Fluorocarbon Polymer Tubing

Formed from extruded fluorocarbon materials: PTFE,PFA,FEP,ETFE. These tubes have excellent head and cold resistance, noninflammable and excellent electrical properties. They remain stable with most chemicals, volatiles and lubricants and reliable under vacuum and any special/extreme environments. Application include tubing for corrosives and paints, and as tubing for experiment.

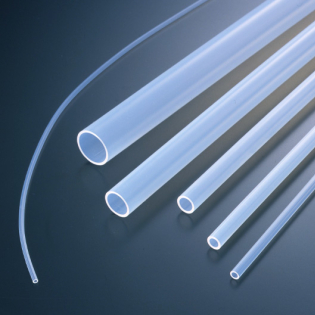

Fluorocarbon Polymer Tubing

Product Name Fluorocarbon Polymer Tubing
  • Fluorocarbon Polymer Tubing
Abbreviation Fluorocarbon Polymer Tubing
  • Fluorocarbon Polymer Tubing : EFT/FT/CFT/TFT
Feature
  • Extruded Fluorocarbon polymer tubing
  • Variety of operating temperature
  • Superior heat resistance, cold resistance
  • Custom design is available regarding different size thickness requirement
Can be used
continuously under		 ETFE : 150℃
FEP : 200℃
PFA : 250℃
PTFE : 250℃

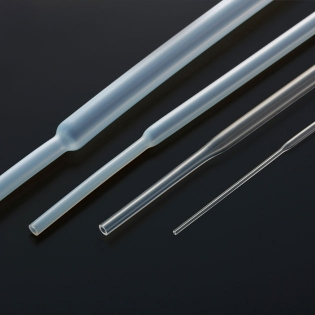

Heat shrinkable fluorocarbon polymer tubing

Product Name Fluorocarbon Polymer Tubing
  • Heat shrinkable fluorocarbon polymer tubing
Abbreviation Fluorocarbon Polymer Tubing
  • Heat shrinkable fluorocarbon polymer tubing : FST/CFST
Feature
  • Heat shrinkable extruded Fluorocarbon polymer tubing
  • Variety of operating temperature
  • Superior heat resistance, cold resistance
  • Superior mechanical strength, electrical strength
  • Custom design is available regarding different size thickness requirement
Can be used
continuously under		 FEP : 200℃
PFA : 250℃
Recommended shrinking
temperature		 FEP : 150℃
PFA : 200℃

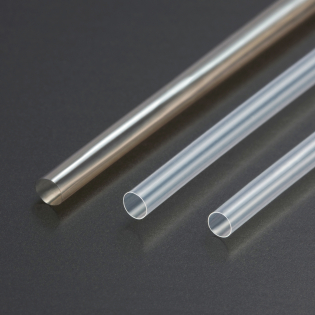

Thin-Wall fluorocarbon polymer tubing

Product Name Fluorocarbon Polymer Tubing
  • Thin-Wall fluorocarbon polymer tubing
Feature
  • Tube extruded from fluorocarbon polymer with an ultra‑thin wall
  • Available in different material grades depending on continuous operating temperature requirements
  • Excellent sliding properties, heat resistance, cold resistance, and chemical resistance
  • Custom sizes and special wall thickness configurations available
  • Wall thickness available from 20 μm (varies depending on material)
  • Can also be manufactured with a core material
  • Chemical surface treatment can be applied to the outer surface

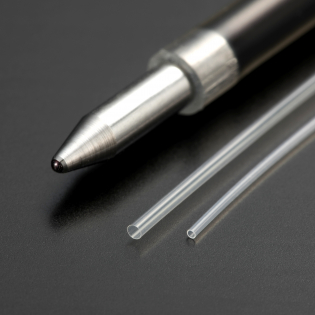

Ultrafine fluorocarbon polymer tubing

Product Name Fluorocarbon Polymer Tubing
  • Ultrafine fluorocarbon polymer tubing
Feature
  • Tube extruded from fluorocarbon polymer into an ultra‑fine diameter
  • Available in different material grades depending on continuous operating temperature requirements
  • Excellent sliding properties, heat resistance, cold resistance, and chemical resistance
  • Custom sizes and special wall thickness configurations available
  • Outer diameter available from 0.2 mm and up (OD varies depending on material)
  • Can also be manufactured with a core material
  • Chemical surface treatment can be applied to the outer surface

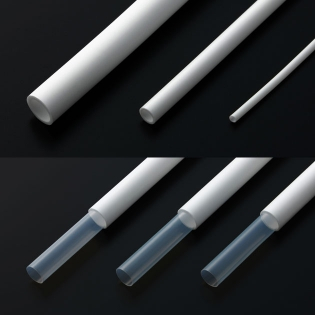

Future Tubing

Product Name Fluorocarbon Polymer Tubing
  • Future Tubing Single
Feature
  • Porous PTFE Tubing
  • Superior flexibility,air permeable,sliding property,chemical resisitance
  • Custom design is available regarding different size thickness requirement​
Product Name Fluorocarbon Polymer Tubing
  • Future Tubing Multi
Feature
  • Double layer structure of a PTFE solid layer for inner layer and a porous PTFE layer for outer layer
  • Superior flexibility,air tightness,sliding property,chemical resisitance
  • Custom design is available regarding different size thickness requirement
Products designed and manufactured upon customer's requirements.
Please do not hesitate to contact us for more information.
